At the present time, Automatic Ultrasonic Testing (AUT) has become the NDE industry standard examination method for girth weld inspection. BIPL ensures that you benefit from AUT system’s superior analysis and computerized data management system. We undertake the most recent technologies in bringing you the AUT’s advantages of greater safety, faster cycle time and accurate detection.

BIPL have experienced staff who trained & Certified the technicians with vast knowledge of general & practical field to perform the testing work with much ease Level I & II ( ASNT ).

Through a team of trained, skilled and experienced professionals,BIPL provides advanced Phased Array Ultrasonic Testing (PAUT) for flaw detection, sizing and imaging. It offers significant technical advantages for weld testing and plant monitoring over conventional ultrasonic as the phased array beams can be steered, scanned, swept and focused electronically from a fixed probe position. Condition assessment of the boiler pressure parts through Remnant Life Assessment study is carried out to ascertain the healthiness of Boiler.

Fibroscopes are used for visual inspection work where the area to be inspected is inaccessible by other means.

With the aid of our skilled and talented professionals, our firm is actively involved in offering the best quality Construction Material Testing Services. The provided services are widely appreciated and are used to determine the quality and durability of the material used during construction. Our personnel have vast experience in this domain and are well updated with all the latest advancement in this field. In addition, we offer these services at industry leading price to our esteemed clients. Other Details: Hassle free management Timely execution Reliable

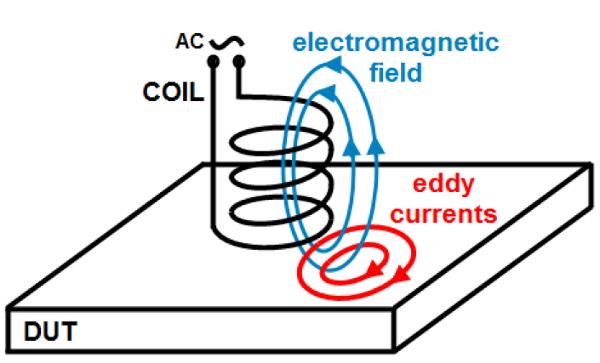

It is widely known that eddy current measurements can provide useful information on the properties of ferrous materials. Modifications of the micro structure and of the dislocations distribution caused by heat treatment or work hardening result in variations of the magnetic domain wall motion, which affect the electromagnetic response of the sample. While the underlying microscopic mechanism relating these quantities is difficult to describe quantitatively, the relation between the electromagnetic response and the micro-structure is a very efficient empirical tool to sort parts, both by comparison with reference batches or by statistical analysis of samples.

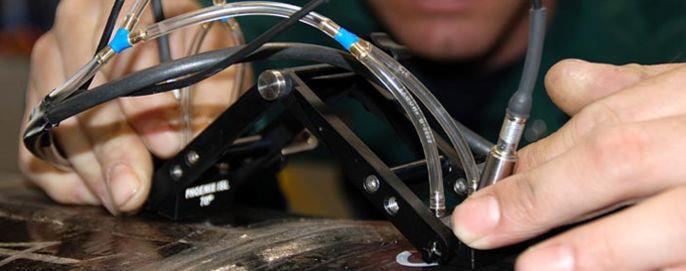

Time of Flight Diffraction (TOFD) has proven to be the most accurate and effective NDT technique in determining the defect height. Through a fully computerized system, our experts provide a grade of accuracy never achieved by other ultrasonic techniques. The system provides scan, store and evaluate indications in terms of height, length and position.

Normalizing Heat Treatment process is heating a steel above the critical temperature, holding for a period of time long enough for transformation to occur, and air cooling.

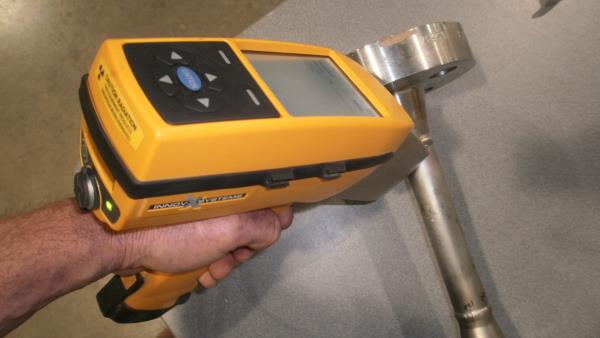

BIPL employ positive Material identification service with an onsite inspection and testing team that has multiple highly sophisticated handheld/portable X-Ray Florescence spectrometers. This method is suited to measure the composition of the materials, non-destructive and accurately.

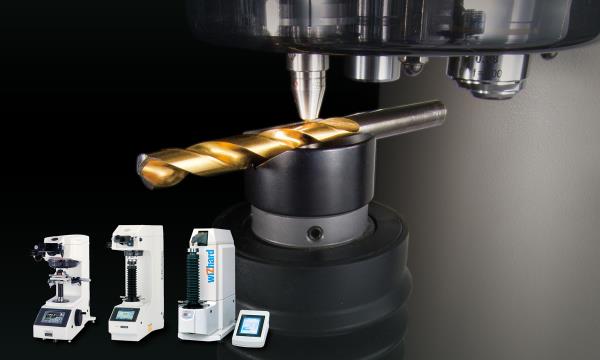

BIPL also provides mobile hardness testing as it represents a quick, economical and dependable way to measure hardness. Hardness testing is understood as the resistance of a material against the vertical penetration of a body by a material of greater hardness. The hardness of a material is determined by forcing an indenter into the surface of the material under load and then measuring the indentation size, or the backward bounce speed and distance of the plunger applied. There are three principal standard test methods for expressing the relationship between hardness and the size of the impression, these being Brinell, Vickers, and Rockwell.

Preheating involves rising the temperature of the parent material locally, on both sides of the joint to a value above ambient. The need for preheat is usually determined by the pertinent fabrication code and verified by the weld procedure qualification test. Preheat may be required as an aid to welding for one of the four basic reasons:

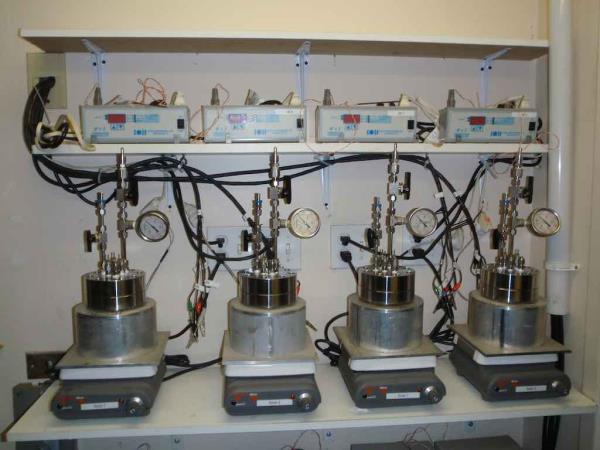

Several methods exist for the testing of intergranular corrosion. At BIPL, our experts undertake the best-suited method for detecting susceptibility to inter granular attack. Every testing is carried out as per ASTM standard practices – A, B, C, D and E.
